Irrigation

DOROT S80-2

2-way Continuous Current Operator

DOROT S80-2, is a 2-way Continuous Operator, designed for electrically-activated, automatic control valves in irrigation systems, controlled by continuous current controllers. DOROT S80-2 Operator, is assembled directly on the valve bonnet (integral solenoid assembly), or on the DOROT Solenoid Base, allowing for various electrically-activated control trims.
Downloads

Product Page (PDF)

EN

ES

Technical Specifications

Size Unit

Voltage

24VAC, 24VDC, 12VDC

Wires

2 wires

Working pressure range

0 - 10 bar

Base connection

¾” 20 UNEF-2A male threaded

Manual override (optional)

Knob (in main valve’s bonnet) or selector (turn)

Enclosure

IP66

Materials of construction

Body

Coated Steel

Seals

NBR

Internal Parts

Stainless Steel

DOROT S80-2

DOROT S80-2

DOROT S80-2

Features and Benefits

Large orifice
  • Protects against blockage, reducing time & maintenance costs
  • Cuts down on inspections & maintenance, reducing labor costs
Durable, corrosion-resistant composite materials
  • High resistance to chemicals & fertilizers
10-bar pressure rating
  • Able to handle demanding high-pressure systems
Engineered for long-term performance & field-proven reliability
  • High reliability & dependability throughout operating lifespan

Related Products

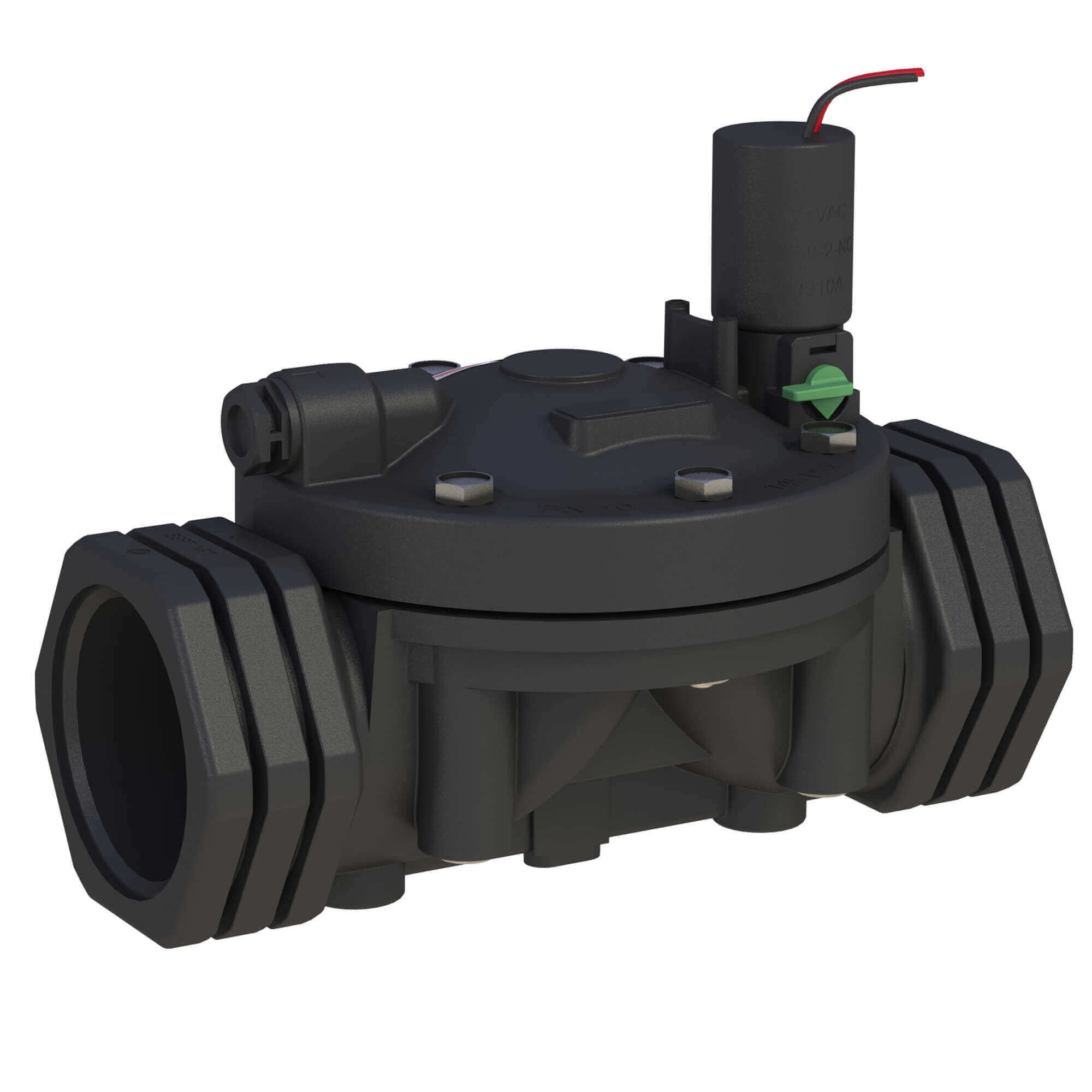

DOROT S75 ED2 (2W)

Weir-type Diaphragm, 2-way Solenoid-controlled Globe Valve

DOROT S80 ED2 (2W)

Diaphragm-actuated, Rigid Seal, 2-way Solenoid-controlled Valve

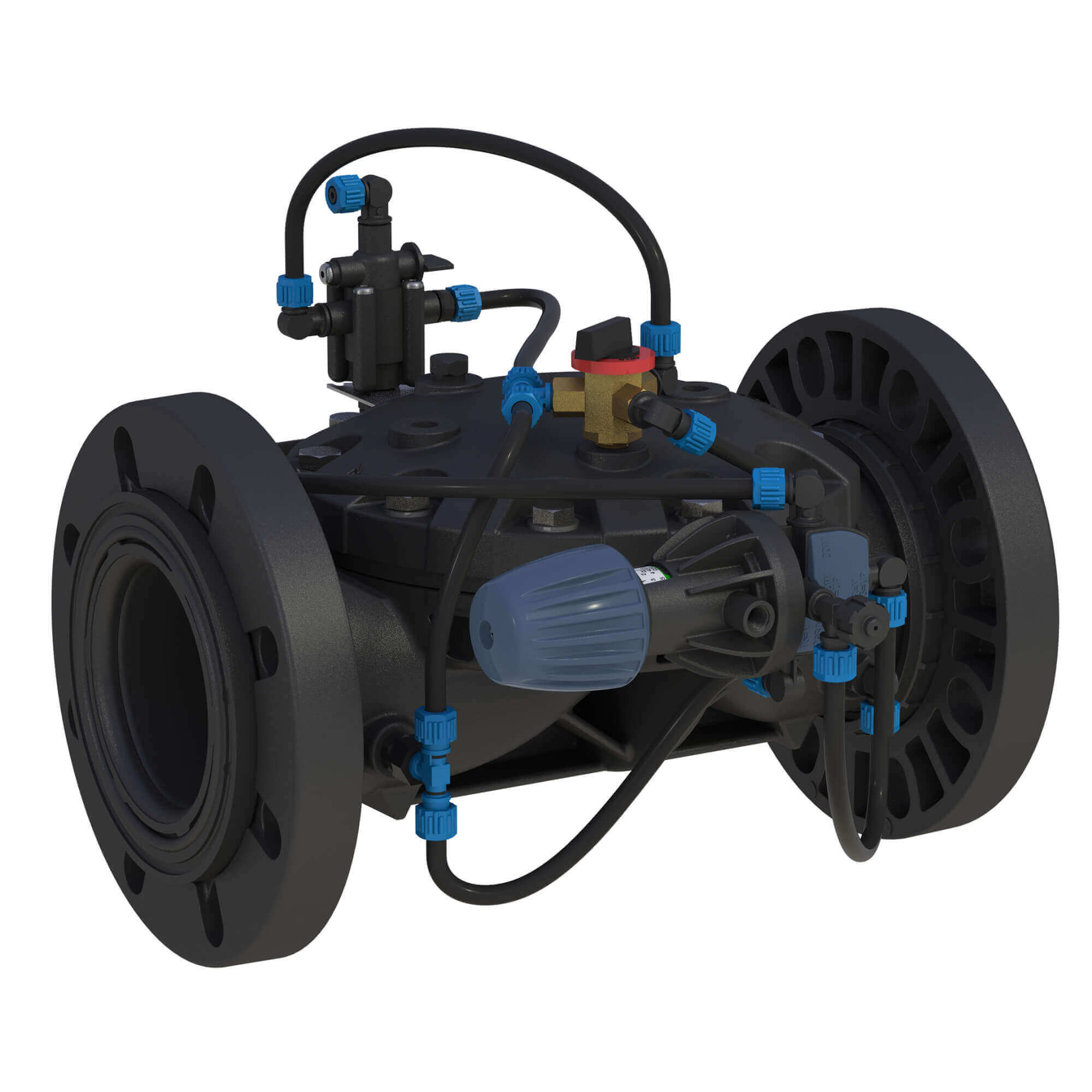

DOROT S75 PR/RC/M (3W)
